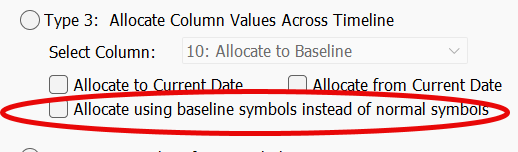

SetValueSetProperty
SetValueSetProperty("ValueSetName", "Type3AllocateValuesUsingBaselineSymbols", "Yes" or "No")
This sets the following setting in the ValueSet Properties dialog:
DisplayMessageBoxYesNoCancel
DisplayMessageBoxYesNoCancel("Your Question")
Returns "Yes", or "No" or "Cancel"
SetToolboxHorizontalConnectorProperty
Additions to SetToolboxHorizontalConnectorProperty
"AfterStatusFillPattern" 1-57 (the pattern from dropdown)
"LeaveOffEndsOfBars" 0-1 (0 show ends, 1 leave ends off)
"FillColorTarget2" RBG color
"AfterStatusFillColorTarget2" RGB Color
"UseTargetColorForPatternBackgroundColor" 0-1 (0 do not use, 1 use)
SetTasklineFillPattern
SetTasklineFillPattern (nTask, nSection, nPattern)
nSection = 0, 1, 2 for left, schedule area, right
nPattern = 1-57
SetCurtainDisplayOptions
SetCurtainDisplayOptions(nCurtain, DisplayOption, (optional)ShowCurtainsOverGridlinesAndShading)
Optional argument 3 added:
To set the ShowCurtainsOverGridlinesAndShading
=0 never
=1 over both shading and gridlines
=2 over shading but not gridlines
Note arg3 is optional to avoid breaking existing programs which just call it with 2 arguments.
SetMiscProperty
SetMiscProperty("ShowGridlinesOnTopOfHolidayWeekendShading" ,0 or 1)
"ShowGridlinesOnTopOfHolidayWeekendShading" forces gridlines to be on top of any holiday or weekend shading. Without this setting any holiday or weekend shading will be on top of task row gridlines.

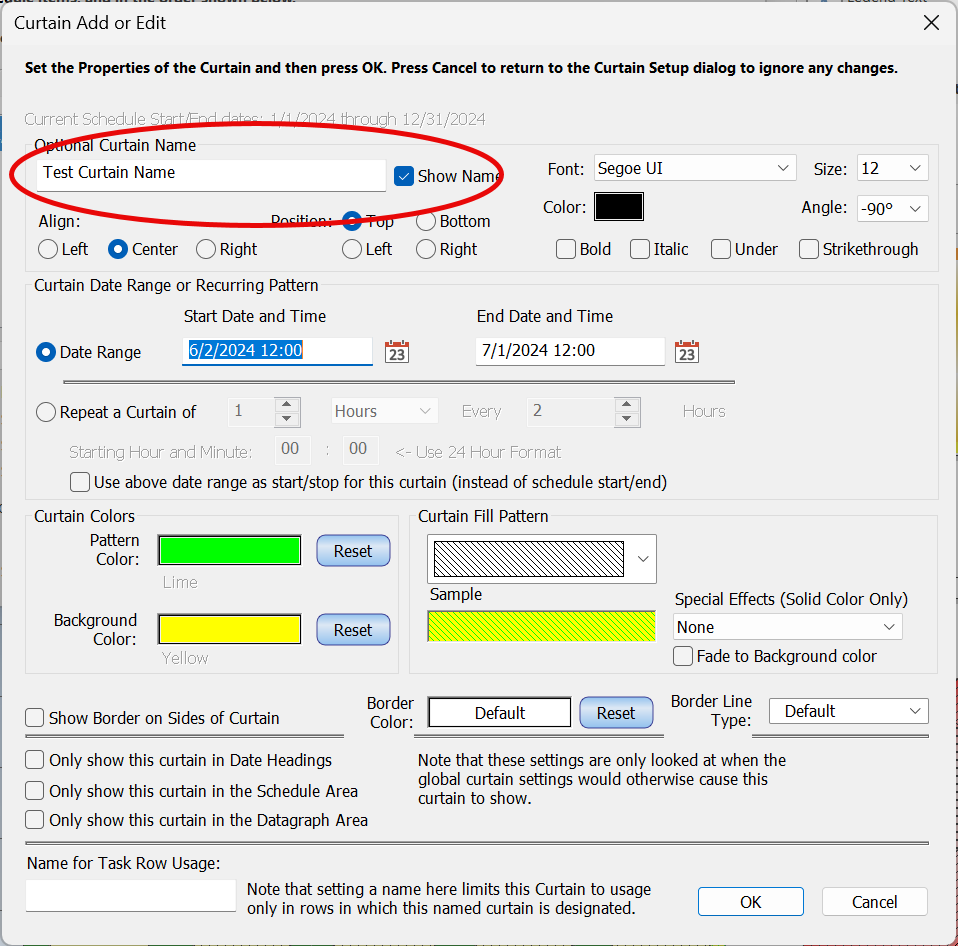

SetCurtainProperties
SetCurtainProperties 1, "6/2/2024", "7/1/2024", RGB(0, 255, 0), RGB(255, 255, 0), 4, 0, "", "Test Curtain Name"
Added argument 9 to SetCurtainProperties. Argument 9 is the Optional Curtain Name that overlays the curtain on the schedule:
Note that arguments 8 and 9 are optional, but to have 9 you must have 8. If you are not using arg 8 then just pass an empty or 1 blank character string as shown above.
SetCurtainNamedProperty
SetCurtainNamedProperty nCurtainNumber "PropertyName", "Property Value"
arg 1, curtain number. note that curtain number can change if a prior curtain is deleted
arg 2, named property to change
arg 3, new value for property - can be number or string
"OptionalCurtainLabel", "New Label"
"CurtainLabelFont", "Font Name" must exactly match an existing font name, case is probably ignored
"CurtainLabelFontSize", nSize - must match valid sizes in Milestones: 3,4,5,6,7,8,9,10,11,12,14,16,18,20,22,24,26,28,32,36,40,44,48,60,72
"CurtainLabelFontColor", nColor - must be an RGB color, such as RGB(255,0,0)
"CurtainLabelTextAngle", nAngle - must be 0, 90, or -90
"CurtainLabelTextAlign", nAlign - must be 0, 1, or 2 (left, center, right)
"CurtainLabelPosition", nPosition - must be 0, 1, 2, or 3 (top, bottom, left, right)
"CurtainLabelBold", nBold - must be 0, 1 (not bold, bold)
"CurtainLabelItal", nItal - must be 0, 1 (not ital, ital)
"CurtainLabelTextUnder", nUnder - must be 0, 1, 2, 3 (not under and not strikethrough, under but not strikethrough, not under but strikethrough, under and strikethrough)
"CurtainLabelShow", nShow - must be 0, 1 (not showing, showing)
Examples:
.SetCurtainNamedProperty 1, "OptionalCurtainLabel", "New Label"
.SetCurtainNamedProperty 1, "CurtainLabelFont", "courier new"
.SetCurtainNamedProperty 1, "CurtainLabelFontSize", 36
.SetCurtainNamedProperty 1, "CurtainLabelFontColor", RGB(255, 0, 0)
.SetCurtainNamedProperty 1, "CurtainLabelTextAngle", -90
.SetCurtainNamedProperty 1, "CurtainLabelTextAlign", 1
.SetCurtainNamedProperty 1, "CurtainLabelTextPosition", 3
.SetCurtainNamedProperty 1, "CurtainLabelTextBold", 1
.SetCurtainNamedProperty 1, "CurtainLabelTextItal", 1
.SetCurtainNamedProperty 1, "CurtainLabelTextUnder", 3
.SetCurtainNamedProperty 1, "CurtainLabelShow", 0
