Example - Create a schedule using Access data

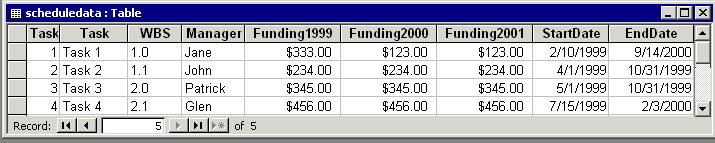

This example code takes the information in this Access table and generates a schedule.

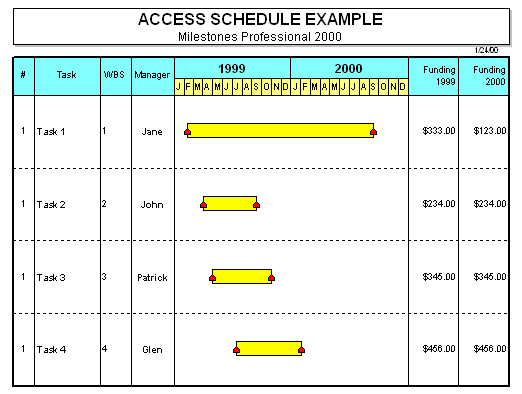

Here's the schedule that is generated:

Here's the code:

Public Sub CreateSchedule()

Dim dbsCurrent As Database

Dim rstTable1 As Recordset

Dim numberoftasklines As Integer

Dim numberofsymbols As Integer

Dim x As Integer

Dim x2 As Integer

Dim TaskNumber As Integer

'Identify the table

Set dbsCurrent = CurrentDb()

Set rstTable1 = dbsCurrent.OpenRecordset("scheduledata", dbOpenTable)

Set objMilestones = CreateObject("Milestones")

With objMilestones

' Locate first record.

  rstTable1.MoveFirst

' Activate Milestones Professional Schedule

  .Activate

' This template should be in your default templateA standard template named default.mtp is installed with Milestones Professional.  When the New File icon is used to create a new schedule, default.mtp is used.  Save any schedule template using the name default.mtp to have new schedules start with certain format. folder for this program to work properly.

  .Template "AccessTemplate.mtp"

'Check to see if there is any data on the schedule. If so, delete

numberoftasklines = .GetNumberOfLines

For x = 1 To numberoftasklines

  numberofsymbols = .GetNumberOfSymbolsInLine(x)

  If numberofsymbols > 0 Then

  For x2 = 1 To numberofsymbols

  .DeleteSymbol x, 1

  .SortSymbols x

  Next x2

  End If

Next x

TaskNumber = 0

  'Start of loop

  Do Until rstTable1.EOF

  TaskNumber = TaskNumber + 1

  On Error GoTo SkipDate

  'Use Milestones Professional OLE Automation calls to add symbols to the schedule

  .AddSymbol TaskNumber, Format(rstTable1!StartDate, "mm/dd/yy"), 1, ,2

  .AddSymbol TaskNumber, Format(rstTable1!EndDate, "mm/dd/yy"), 1, 1, 2

SkipDate:

  'Add information to the task columns

  .PutCell TaskNumber, 1, rstTable1!Manager

  .PutCell TaskNumber, 2, rstTable1!WBS

  .PutCell TaskNumber, 3, rstTable1!Task

  .PutCell TaskNumber, 4, rstTable1!TaskNumber

  .PutCell TaskNumber, 6, rstTable1!Funding1999

  .PutCell TaskNumber, 7, rstTable1!Funding2000

  .PutCell TaskNumber, 8, rstTable1!Funding2001

  'Move to the next record

  rstTable1.MoveNext

  Loop

  ' End of loop.

  'Close Table

  rstTable1.Close

  .SetLinesPerPage TaskNumber

  .SetTitle1 "ACCESS SCHEDULE EXAMPLE"

  .SetTitle2 "Milestones Professional"

  .Print 1, 1

  .Refresh

  .KeepScheduleOpen

End With

Exit Sub

End Sub
