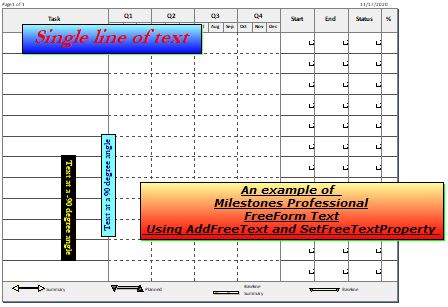

Example - Freeform Text Sampler

 Dim textstring As String, textstring2 As String, textstring3 As String, textstring4 As String

        Dim freetextindex As Integer

        With milestonesobject

            textstring = "An example of  " + Chr(13) + "Milestones Professional" + Chr(13) + "FreeForm Text" + Chr(13) + " Using AddFreeText and SetFreeTextProperty "

            ' Chr(13) is a line break, forces text onto a new row

            ' string, x position in inches from left, y position in inches from top

            freetextindex = .AddFreeText(textstring, 2, 2)

            .setfreetextproperty(freetextindex, "Page", 1)  ' Only on page 1

            .setfreetextproperty(freetextindex, "Xpos", 4)  ' change position to 4 inches in from the left edge

            .setfreetextproperty(freetextindex, "Ypos", 5)  ' change position to 5 inches down from the top

            .setfreetextproperty(freetextindex, "TextColor", RGB(0, 0, 0)) ' set color to black

            .setfreetextproperty(freetextindex, "Border", 1) ' turn on the border

            .setfreetextproperty(freetextindex, "Transparent", 0) ' not transparent, so background color will appear

            .setfreetextproperty(freetextindex, "BackgroundColor", RGB(255, 0, 0)) ' Set background color

            .setfreetextproperty(freetextindex, "BackgroundColorTarget", (RGB(255, 255, 153)))  'Set a second color for special effects

            .setfreetextproperty(freetextindex, "FadeType", 2) ' Use the Fade to top special effect

            .setfreetextproperty(freetextindex, "Italic", 1) ' Turn on Italic

            .setfreetextproperty(freetextindex, "Shadow", 1) ' Turn on a shadow

            .setfreetextproperty(freetextindex, "ShadowColor", RGB(0, 255, 0)) ' Set the shadow color to green

            .setfreetextproperty(freetextindex, "TextHeight", 22) ' Set the text size to 22 point

            .setfreetextproperty(freetextindex, "Underline", 1) ' Turn on Underline

            .setfreetextproperty(freetextindex, "Bold", 1) ' Turn on Bold

            .setfreetextproperty(freetextindex, "TagInfo", "Text1")  ' Add a tag

            .setfreetextproperty(freetextindex, "FontName", "Verdana")  ' Set the font

            .setfreetextproperty(freetextindex, "TextAlign", 1)  ' Use Center Alignment

            textstring2 = "  Single line of text  "

            freetextindex = .AddFreeText(textstring2, 2, 2) ' string, x position in inches from left, y position in inches from top

            .setfreetextproperty(freetextindex, "Page", 1)  ' Only on page 1

            .setfreetextproperty(freetextindex, "Xpos", 1)  ' change position to 1 inches in from the left edge

            .setfreetextproperty(freetextindex, "Ypos", 1)  ' change position to 1 inches down from the top

            .setfreetextproperty(freetextindex, "TextColor", RGB(255, 0, 0)) ' set color to red

            .setfreetextproperty(freetextindex, "Border", 1) ' turn on the border

            .setfreetextproperty(freetextindex, "Transparent", 0) ' not transparent, so background color will appear

            .setfreetextproperty(freetextindex, "BackgroundColor", RGB(0, 0, 255)) ' Set background color

            .setfreetextproperty(freetextindex, "BackgroundColorTarget", (RGB(153, 255, 255)))  'Set a second color for special effects

            .setfreetextproperty(freetextindex, "FadeType", 2) ' Use the Fade to top special effect

            .setfreetextproperty(freetextindex, "Italic", 1) ' Turn on Italic

            .setfreetextproperty(freetextindex, "Shadow", 1) ' Turn on a shadow

            .setfreetextproperty(freetextindex, "ShadowColor", RGB(111, 255, 111))

            .setfreetextproperty(freetextindex, "TextHeight", 38) ' Set the text size to 38 point

            .setfreetextproperty(freetextindex, "Underline", 0) ' Turn off Underline

            .setfreetextproperty(freetextindex, "Bold", 1) ' Turn on Bold

            .setfreetextproperty(freetextindex, "TagInfo", "Text2")  ' Add a tag

            .setfreetextproperty(freetextindex, "FontName", "Garamond")  ' Set the font

            .setfreetextproperty(freetextindex, "TextAlign", 1)  ' Use Center Alignment

            textstring3 = "  Text at a 90 degree angle  "

            freetextindex = .AddFreeText(textstring3, 3, 2) ' string, x position in inches from left, y position in inches from top

            .setfreetextproperty(freetextindex, "textangle", 1)  ' 90 degree angle

            .setfreetextproperty(freetextindex, "Page", 1)  ' Only on page 1

            .setfreetextproperty(freetextindex, "Xpos", 3)  ' change position to 3 inches in from the left edge

            .setfreetextproperty(freetextindex, "Ypos", 6)  ' change position to 3 inches down from the top

            .setfreetextproperty(freetextindex, "TextColor", RGB(0, 0, 128)) ' set color to navy

            .setfreetextproperty(freetextindex, "Border", 1) ' turn on the border

            .setfreetextproperty(freetextindex, "Transparent", 0) ' not transparent, so background color will appear

' Set background color to aqua

            .setfreetextproperty(freetextindex, "BackgroundColor", RGB(128, 255, 255))

            .setfreetextproperty(freetextindex, "TextHeight", 18) ' Set the text size to 18 point

            .setfreetextproperty(freetextindex, "Underline", 0) ' Turn off Underline

            .setfreetextproperty(freetextindex, "Bold", 1) ' Turn on Bold

            .setfreetextproperty(freetextindex, "TagInfo", "Text3")  ' Add a tag

            .setfreetextproperty(freetextindex, "FontName", "Garamond")  ' Set the font

            .setfreetextproperty(freetextindex, "TextAlign", 1)  ' Use Center Alignment

            textstring4 = "  Text at a -90 degree angle  "

            freetextindex = .AddFreeText(textstring4, 3, 2) ' string, x position in inches from left, y position in inches from top

            .setfreetextproperty(freetextindex, "textangle", 2)  ' - 90 degree angle

            .setfreetextproperty(freetextindex, "Page", 1)  ' Only on page 1

            .setfreetextproperty(freetextindex, "Xpos", 2)  ' change position to 2 inches in from the left edge

            .setfreetextproperty(freetextindex, "Ypos", 4)  ' change position to 3 inches down from the top

            .setfreetextproperty(freetextindex, "TextColor", RGB(255, 255, 0)) ' set color to yellow

            .setfreetextproperty(freetextindex, "Border", 1) ' turn on the border

            .setfreetextproperty(freetextindex, "Transparent", 0) ' not transparent, so background color will appear

            .setfreetextproperty(freetextindex, "BackgroundColor", RGB(0, 0, 0)) ' Set background color to black

            .setfreetextproperty(freetextindex, "TextHeight", 18) ' Set the text size to 18 point

            .setfreetextproperty(freetextindex, "Underline", 0) ' Turn off Underline

            .setfreetextproperty(freetextindex, "Bold", 1) ' Turn on Bold

            .setfreetextproperty(freetextindex, "TagInfo", "Text4")  ' Add a tag

            .setfreetextproperty(freetextindex, "FontName", "Garamond")  ' Set the font

            .setfreetextproperty(freetextindex, "TextAlign", 1)  ' Use Center Alignment

        End With
