SetTaskLineGrid
Purpose: Set the grid line for an individual task.
Returns: none
|
Argument |
Type |
Required |
Purpose |
|
1 |
Integer |
Yes |
Task Number |
|
2 |
Integer |
Yes |
0,1,2 (0=left, 1=schedule, 2=right) |
|
3 |
Integer |
Yes |
Color. (See color numbering) A value of -1 will reset the value to the default. |
|
4 |
Integer |
Yes |
GridType. 0=solid line, 1=dotted line, 2=dashed line, 3=thick line A value of -1 will reset the value to the default. |
Note:
-
Use either this method or SetTaskLineShade (not both).

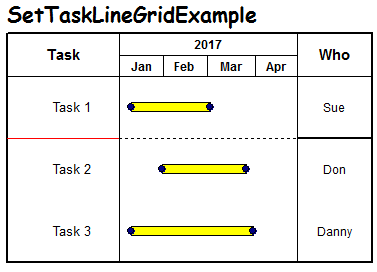

Example: Sets the left columns of a task line (task 1) to solid red, the middle to dotted black and the right columns to thick black
With objMilestones
.SetTaskLineGrid 1,0,RGB(255,0,0),0 'task 1, left side, Red, Solid
.SetTaskLineGrid 1,1,RGB(0,0,0),1 'task 1, schedule area, Black, dashed
.SetTaskLineGrid 1,2,RGB(0,0,0),3 'task 1, right side, Black, Thick Line
End With
