Rotate column heading and column text

Question:

I am trying to change the column header text in some of my columns to be rotated 90 degrees.  I know it can be done because one of my associates was able to do it.

I would like the text in one of my columns to be rotated.



Answer:

  1. Rotate the column heading:

    1. Click the heading.  The tool bar changes to Current Object Column Heading.

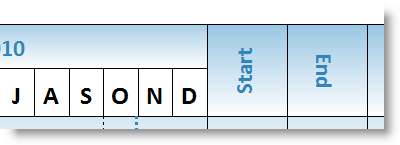

    2. In the Column Heading Text Display Settings section,  under Text Attributes change the degree to -90 or 90.  In the example below Start is rotated 90 degrees and End is rotated -90 degrees.





  1. Rotate the column text:

    1. Select the column.  The toolbar changes to Current Object: Column.

    2. In the Column Type and Format section,  under the Alignment options,  pick one of the options in the drop down to rotate the text and justify it (L, C or R) in the column.  In the example below, the cell text is rotated 90 degrees and Left (L) justified.






















Related topics

Difference between status line and current date line

Show two date lines

Curtains (Milestones Help)

Vertical lines similar to current date line















Applies to Milestones Professional:      2019        2021        2023
