Sub MilestonesSampler()
Dim strtemp As String, ncounter As Integer
Dim crlfstring As String
crlfstring = Chr(13) + Chr(10) + Chr(13) + Chr(10)
With milestonesobject
.use20columns()
.allcolorsarergb()
.applycolortheme("autumn", "false", "true")
.setmiscproperty("splitduration", 1)
For ncounter = 1 To 20
.setcolumnproperty(ncounter, "width", 0.0)
.setcolumnproperty(ncounter, "smartcolumn", "none")
Next
.setsymbolfilltostatus("off")
.setconnectorfilltostatus("off")
'set up a column, 2 inches wide
.SetColumnWidth(1, 2.0)
'set number of lines per page to 11
.setlinesperpage(11)
'no legend
.setlegendheight(0.0)
setupacooltoolbox()
.settoolboxhorizontalconnectorproperty(2, "Type", 62)
'Add tasks and symbols to the schedule
For ncounter = 1 To 11
Dim startsymboltype As Integer
startsymboltype = ncounter * 2 + 1
strtemp = "This is Task Row " + CStr(ncounter)
.PutCell(ncounter, 1, strtemp)
strtemp = CStr(ncounter + 1) + "/12/2023"
.AddTaskUsingDuration(ncounter, strtemp, startsymboltype, ncounter, 0, startsymboltype + 1, 33 + ncounter, "day")
Dim percentcomplete As Integer
percentcomplete = ncounter * 10
If percentcomplete > 100 Then percentcomplete = 100
.SetSymbolProperty(ncounter, 1, "Percent1Override", percentcomplete)
Next ncounter
'Add a symbol
.SetSymbolProperty(5, 1, "SymbolNotes", "A sample symbol note" + crlfstring + "the second line")
.SetSymbolProperty(5, 1, "SymbolNoteDisplay", 1)
.SetSymbolProperty(5, 1, "SymbolNoteFont", "Bodoni")
.SetSymbolProperty(5, 1, "SymbolNoteFontSize", 8)
.SetSymbolProperty(5, 1, "SymbolNoteBackgroundColor", RGB(255, 200, 200))
.SetSymbolProperty(5, 1, "SymbolNoteBackgroundColorTarget", RGB(255, 0, 0))
.SetSymbolProperty(5, 1, "SymbolNoteFrameColor", RGB(255, 255, 0))
.SetSymbolProperty(5, 1, "SymbolNoteShadowColor", RGB(0, 0, 255))
.SetSymbolProperty(5, 1, "SymbolNoteConnectorColor", RGB(150, 150, 150))
.SetSymbolProperty(5, 1, "SymbolNoteFrameDisplay", 0)
.SetSymbolProperty(5, 1, "SymbolNoteShadowDisplay", 1)
.SetSymbolProperty(5, 1, "SymbolNoteConnectCenter", 1)
.SetSymbolProperty(5, 1, "SymbolNoteSpecialEffects", 7)
.SetSymbolProperty(5, 1, "SymbolNoteConnectorType", 7)
.SetSymbolProperty(5, 1, "SymbolNoteFontJustification", 1)
.SetSymbolProperty(5, 1, "SymbolNoteFontBold", 1)
.SetSymbolProperty(5, 1, "SymbolNoteFontItalic", 1)
.SetSymbolProperty(5, 1, "SymbolNoteFontUnderline", 1)
.SetSymbolProperty(5, 1, "SymbolNoteXOffset", -30)
.SetSymbolProperty(5, 1, "SymbolNoteYOffset", -20)
'Format task column
.SetColumnWidth(1, 2.0#)
.SetColumnProperty(1, "SmartColumn", "text")
.SetColumnProperty(1, "TextAlign", 0) 'Left Justified
.SetColumnProperty(1, "ColumnHeadingLine1", "Tasks") 'Column Heading
.SetColumnProperty(1, "ColumnHeadingLine2", "")
.SetColumnProperty(1, "Indent", 0.1)
'Add a Duration column
.SetColumnWidth(2, 0.7)
.SetColumnProperty(2, "SmartColumn", "duration")
.SetColumnProperty(2, "TextAlign", 2)
.SetColumnProperty(2, "ColumnHeadingLine1", "Days") 'Column Heading
.SetColumnProperty(2, "ColumnHeadingLine2", "")
.SetColumnProperty("DurationType", 0) ' global property (0=days)
'Add a % Complete column
.SetColumnWidth(3, 0.7)
.SetColumnProperty(3, "SmartColumn", "PercentComplete")
.SetColumnProperty(3, "TextAlign", 2)
.SetColumnProperty(3, "ColumnHeadingLine1", "%") 'Column Heading
.SetColumnProperty(3, "ColumnHeadingLine2", "Comp")
'set the start and end dates
.SetStartAndEndDates("01/01/2023", "03/31/2024")
'set up curtains
.setmiscproperty("ShowCurtainsOverHorzGridlines", 1)
.AddCurtain("1/1/2023", "1/15/2023") 'Curtain 1
' name this curtain...will be set task by task
.SetCurtainProperties(1, "1/1/2023", "1/31/2023", RGB(102, 204, 255), RGB(0, 0, 255), 7, 1, "January2023")
'white pattern color, teal background color, horizontal stripes:
.AddCurtain("3/1/2023", "3/15/2023") 'Curtain 2
.SetCurtainProperties(2, "3/1/2023", "3/15/2023", RGB(255, 255, 255), RGB(0, 128, 128), 2, 0)
'white pattern color, blue background color, diamond pattern:
.AddCurtain("10/1/2023", "11/15/2023") 'Curtain 3
.SetCurtainProperties(3, "10/1/2023", "11/15/2023", RGB(255, 255, 255), RGB(0, 0, 128), 9, 0)
.AddCurtain("1/1/2024", "1/15/2024") 'Curtain 4
.SetCurtainProperties(4, "2/1/2024", "2/28/2024", RGB(0, 128, 0), RGB(204, 255, 255), 17, 1, "Feb2024")
'set task line curtain labelled january2017 on task row 1 and task row 4
.settasklinecurtain(1, 1, "January2023")
.settasklinecurtain(4, 1, "January2023")
'set task line curtain labelled april2020 on task row 1 and task row 5
.settasklinecurtain(1, 2, "Feb2024") ' second parameter (2) indicates this is the second curtain on row 1
.settasklinecurtain(5, 1, "Feb2024")

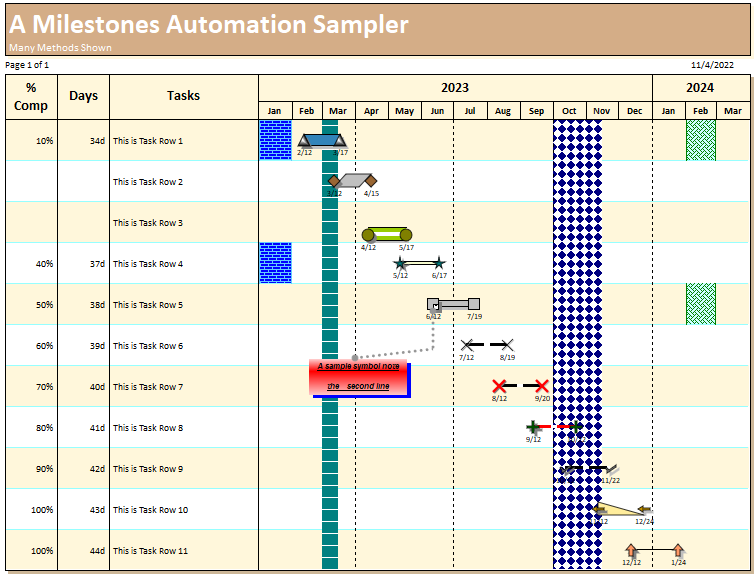

.settitle1("A Milestones Automation Sampler")
.settitle2("Many Methods Shown")
.setfontsize(3, 28)
End With
End Sub
|
